Punctual 准时打卡 Attendance System Installation Kuching 古晋 | Hikvision Fingerprint & Face Terminal 8003EF 804AEF 807 321 342 341

Punctual Models & Installed Prices in Kuching 古晋 — from RM 576

Per door, installed. Swipe the table sideways on a phone. 每扇门安装价，手机可左右滑动。

Punctual Specifications — 7 Models Compared

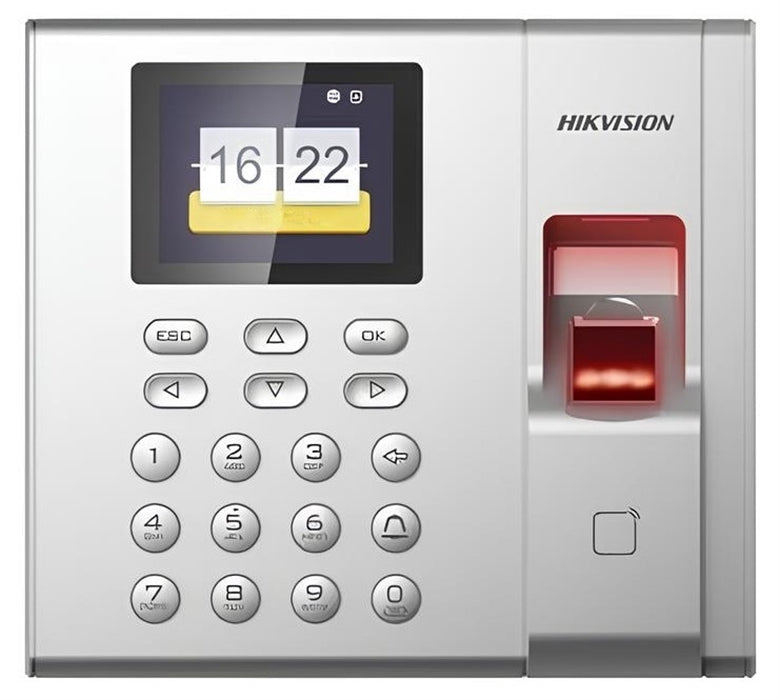

Punctual Finger Lite 经济指纹 — DS-K1T8003EF · Fingerprint + EM Card + PIN · 1,000 Users · USB Reports

Installed from RM 576

• Fingerprint 指纹
• EM card 刷卡
• PIN 密码

• Indoor 室内
• LAN 网线
• Records 记录

Best for 适合Shops, cash & carry and small teams · 小店、批发店、小团队. Fingerprint clock-in with ready-made attendance reports. 指纹打卡，自动出考勤报表。

Specs: 2.4" Colour Screen · 100,000 Records · LAN · Indoor · Installed from RM 576

• Fingerprint, EM card or PIN指纹、EM 卡或密码
• Shifts and attendance reports on the machine, export Excel by USB机器上排班、出报表，USB 导出 Excel
• 6 statuses: check in/out, break in/out, overtime in/out6 种状态：上下班、休息、加班
• 1,000 users and 100,000 records1,000 人，100,000 条记录

Full specs 完整规格 · 6

Open with开门方式

Fingerprint · EM card · PIN

Capacity容量

1,000 fingerprints · 1,000 cards · 100,000 records

Screen屏幕

2.4" colour

Network联网

LAN · 网线

Power供电

12 VDC

Size尺寸

140 × 155 × 30 mm

• Uses EM cards (125 kHz), not M1 cards用 EM 卡（125 kHz），不是 M1 卡
• Indoor use室内使用
• Wet or oily fingers read less well: give staff a card or PIN too手湿、手油会影响指纹，可同时发卡或设密码

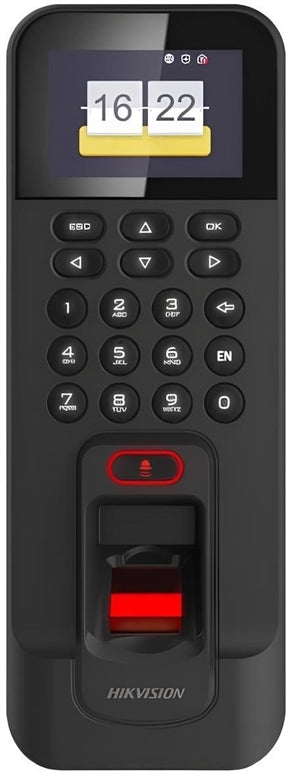

Punctual Finger Wi-Fi 无线指纹 — DS-K1T804AEF · Fingerprint + EM Card + PIN · 3,000 Users · Wi-Fi

Installed from RM 662

• Fingerprint 指纹
• EM card 刷卡
• PIN 密码

• Indoor 室内
• Wi-Fi
• Records 记录
• Payroll-ready 可接算薪

Best for 适合Companies that want attendance to flow into payroll · 要把打卡直接接到算薪的公司. Fingerprint attendance over Wi-Fi, ready for payroll. Wi-Fi 指纹打卡，可直接接算薪。

Specs: 32 Shifts · 100,000 Records · Payroll-Ready · Indoor · Installed from RM 662

• Fingerprint, EM card or PIN指纹、EM 卡或密码
• 32 shifts and automatic attendance reports, export by USB32 个班次，自动出考勤报表，USB 导出
• Wi-Fi or LAN: the software pulls records directly for payrollWi-Fi 或网线，软件直接拉记录算薪
• 3,000 users and 100,000 records3,000 人，100,000 条记录

Full specs 完整规格 · 6

Open with开门方式

Fingerprint · EM card · PIN

Capacity容量

3,000 fingerprints · 3,000 cards · 100,000 records

Screen屏幕

2.4" colour

Network联网

LAN · Wi-Fi

Power供电

12 VDC

Size尺寸

205 × 76.5 × 37 mm

• Uses EM cards (125 kHz), not M1 cards用 EM 卡（125 kHz），不是 M1 卡
• Indoor use室内使用
• Doorbell button, connects a DC12V doorbell有门铃键，可接 12V 门铃

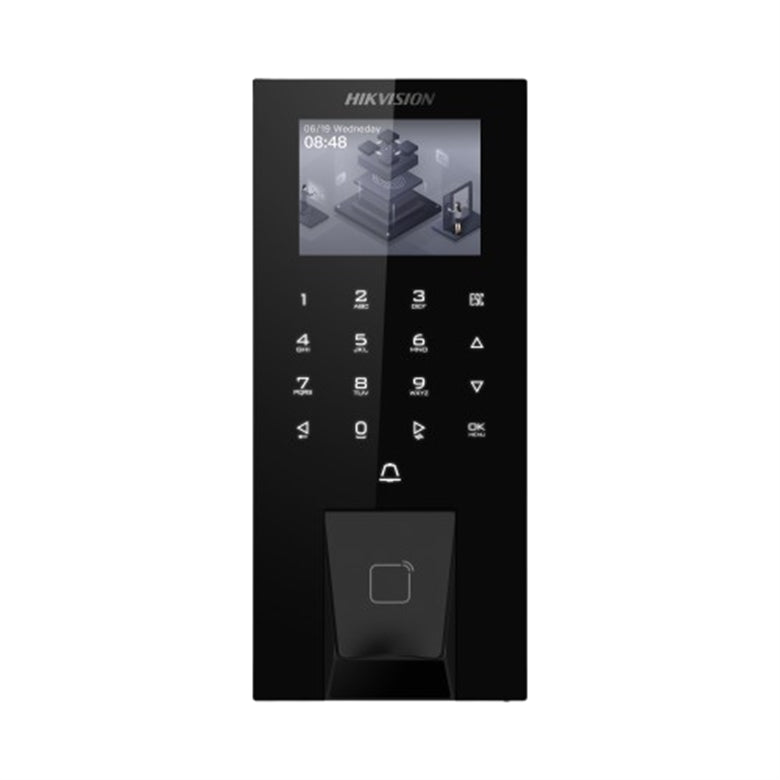

Punctual Finger Pro 全能指纹 — DS-K1T807MBFWX-QRE1 · Fingerprint + Card + PIN + QR + Bluetooth · 5,000 Users · IP65

Installed from RM 692

• Fingerprint 指纹
• M1 card 刷卡
• PIN 密码
• QR code 二维码
• Bluetooth 蓝牙

• Outdoor 户外
• IP65
• Wi-Fi
• PoE
• Records 记录
• Payroll-ready 可接算薪

Best for 适合Restaurants, cafés and outlets with outdoor entrances · 餐饮店、户外入口. Fingerprint, card, PIN, QR or phone — even outdoors. 指纹、卡、密码、二维码、手机都能开，户外也能装。

Specs: 150,000 Records · Wi-Fi · PoE · Outdoor · Payroll-Ready · Installed from RM 692

• 5 ways in: fingerprint, M1 card, PIN, QR code, Bluetooth5 种开门：指纹、M1 卡、密码、二维码、蓝牙
• 5,000 fingerprints, 5,000 cards, 150,000 records5,000 指纹、5,000 张卡、150,000 条记录
• IP65 for outdoor doors, −30 to 60 °CIP65 户外可装，−30 至 60 °C
• Wi-Fi, Bluetooth and PoE; ready for payrollWi-Fi、蓝牙、PoE，可接算薪

Full specs 完整规格 · 6

Open with开门方式

Fingerprint · M1 card · PIN · QR · Bluetooth

Capacity容量

5,000 fingerprints · 5,000 cards · 150,000 records

Screen屏幕

2.4" with touch keys

Network联网

LAN · Wi-Fi · Bluetooth

Power供电

12 VDC or PoE

Protection · Size防护 · 尺寸

IP65 · 172 × 76 × 27.5 mm

• Wet or oily fingers read less well: give kitchen staff a card or PIN too厨房员工手湿、手油会影响指纹，可同时发卡或设密码

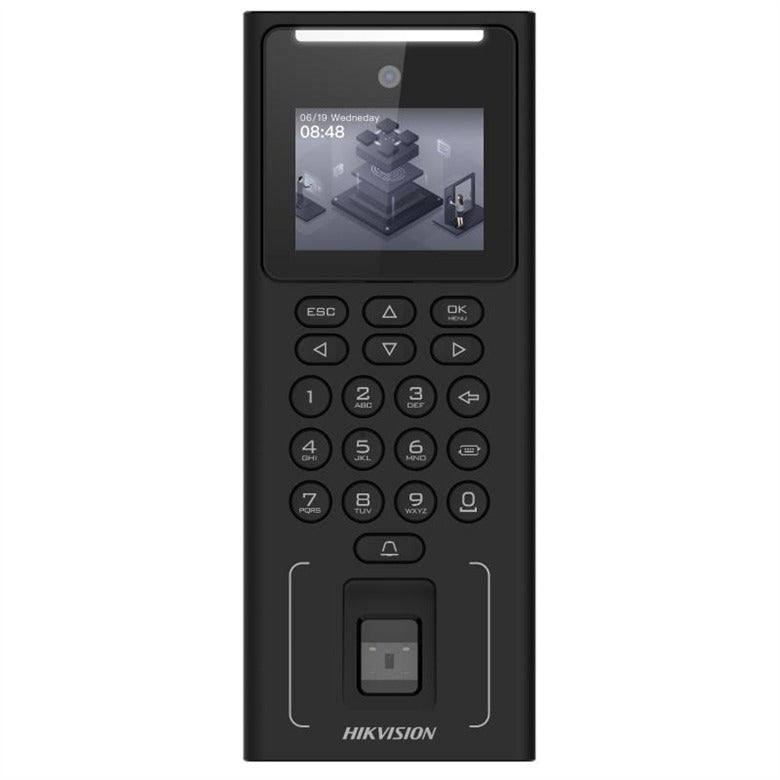

Punctual Face Lite+ 室内刷脸+指纹 — DS-K1T321MFWX · Face + Fingerprint + Card + PIN · 500 Faces · 3,000 Fingerprints

Installed from RM 624

• Face 刷脸
• Fingerprint 指纹
• M1 card 刷卡
• PIN 密码

• Indoor 室内
• Wi-Fi
• Records 记录
• Payroll-ready 可接算薪

Best for 适合Premium F&B, offices and admin counters · 高级餐饮、办公室、行政柜台. Face + fingerprint attendance in a compact indoor unit. 小巧室内机，刷脸加指纹打卡。

Specs: 2.4" Screen + Keypad · Mask Detection · Wi-Fi · Indoor Only · Installed from RM 624

• Face, fingerprint, M1 card or PIN刷脸、指纹、M1 卡或密码
• Blocks fake faces and detects masks防假脸，能识别口罩
• Attendance reports, export by USB考勤报表，USB 导出
• Wi-Fi or LAN, ready for payrollWi-Fi 或网线，可接算薪

Full specs 完整规格 · 6

Open with开门方式

Face · fingerprint · M1 card · PIN

Capacity容量

500 faces · 3,000 fingerprints · 3,000 cards

Screen屏幕

2.4" with keypad

Network联网

LAN · Wi-Fi

Power供电

12 VDC

Records记录

150,000

• Indoor use only只能装室内
• Doorbell key, connects a DC12V doorbell有门铃键，可接 12V 门铃

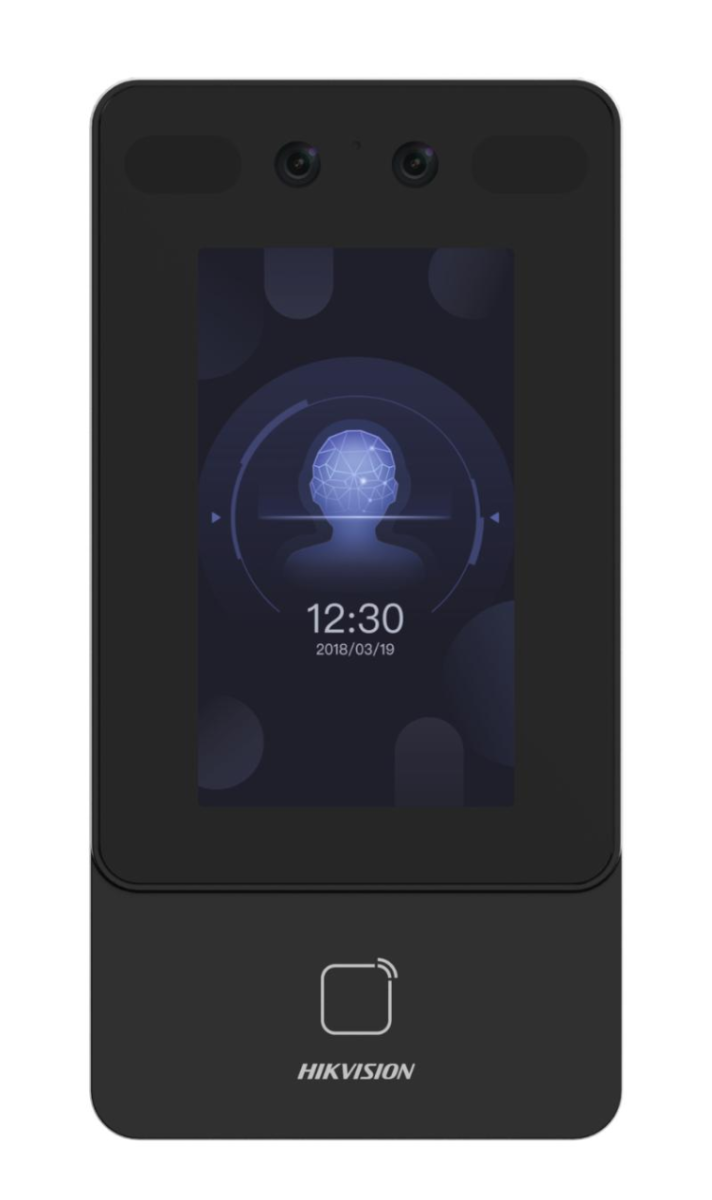

Punctual Face Pro 办公刷脸 — DS-K1T342MWX · Face + M1 Card · 4.3" Touchscreen · 1,500 Faces · IP65

Installed from RM 1,028

• Face 刷脸
• M1 card 刷卡

• Outdoor 户外
• IP65
• Wi-Fi
• Records 记录
• Payroll-ready 可接算薪

Best for 适合Offices · 办公室. 4.3-inch touchscreen face attendance for offices. 4.3 寸触屏刷脸打卡，办公室首选。

Specs: Dual-Lens 2 MP + IR · Touch Call · Wi-Fi · Payroll-Ready · Installed from RM 1,028

• Face or encrypted M1 card, mask recognition刷脸或加密 M1 卡，能识别口罩
• Dual-lens 2 MP camera with IR light, works in low light2 MP 双镜头加红外，暗处也能认
• Touchscreen call to the indoor screen or phone app触屏呼叫室内屏或手机
• IP65, Wi-Fi, ready for payrollIP65 防水，Wi-Fi，可接算薪

Full specs 完整规格 · 6

Open with开门方式

Face · M1 card

Capacity容量

1,500 faces · 3,000 cards · 150,000 records

Screen屏幕

4.3" touch

Network联网

LAN · Wi-Fi

Power供电

12 VDC

Protection · Size防护 · 尺寸

IP65 · 91.3 × 181.3 × 24.5 mm

• No physical doorbell key: call from the touchscreen没有实体门铃键，用触屏呼叫

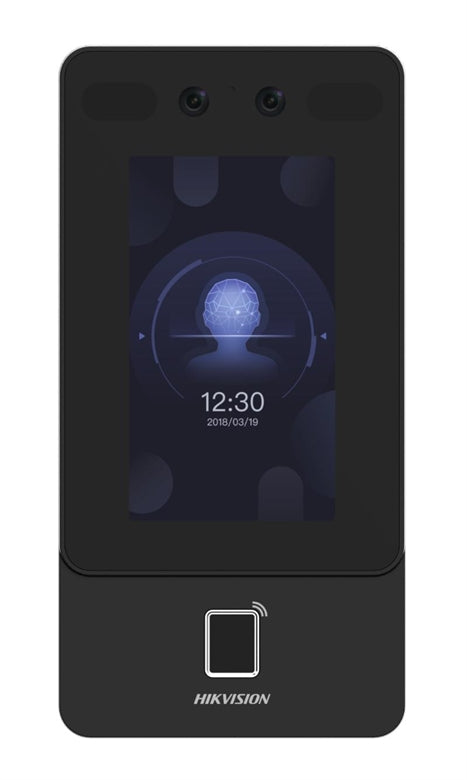

Punctual Face Pro+ 办公刷脸+指纹 — DS-K1T342MFWX · Face + Fingerprint + M1 Card · 4.3" Touchscreen · 3,000 Fingerprints

Installed from RM 983

• Face 刷脸
• Fingerprint 指纹
• M1 card 刷卡

• Outdoor 户外
• IP65
• Wi-Fi
• Records 记录
• Payroll-ready 可接算薪

Best for 适合Offices that want face and fingerprint · 要刷脸又要指纹的办公室. 4.3-inch face attendance, plus fingerprint. 4.3 寸触屏刷脸，再加指纹。

Specs: 1,500 Faces · IP65 · Wi-Fi · Payroll-Ready · Installed from RM 983

• Face, fingerprint or encrypted M1 card刷脸、指纹或加密 M1 卡
• Dual-lens 2 MP camera with IR light, works in low light2 MP 双镜头加红外，暗处也能认
• Touchscreen call to the indoor screen or phone app触屏呼叫室内屏或手机
• IP65, Wi-Fi, ready for payrollIP65 防水，Wi-Fi，可接算薪

Full specs 完整规格 · 6

Open with开门方式

Face · fingerprint · M1 card

Capacity容量

1,500 faces · 3,000 fingerprints · 3,000 cards

Screen屏幕

4.3" touch

Network联网

LAN · Wi-Fi

Power供电

12 VDC

Protection · Size防护 · 尺寸

IP65 · 91.3 × 181.3 × 24.5 mm

• No physical doorbell key: call from the touchscreen没有实体门铃键，用触屏呼叫

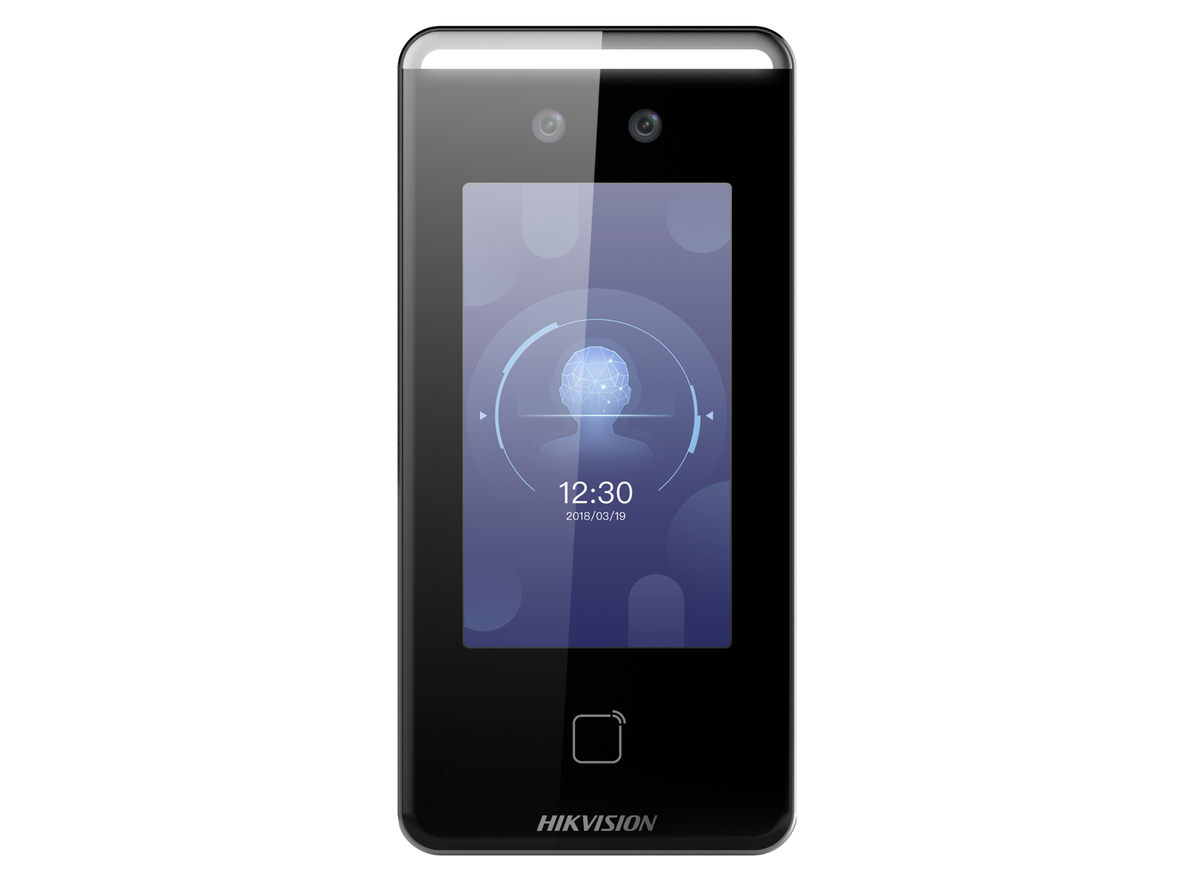

Punctual Face Cloud 云端刷脸 — DS-K1T341CMW · Face + Card + QR + PIN · 4.3" Touchscreen · Hik-Connect App

Installed from RM 1,073

• Face 刷脸
• M1 card 刷卡
• QR code 二维码
• PIN 密码
• App 手机 app

• Outdoor 户外
• IP65
• Wi-Fi
• Records 记录

Best for 适合Owners who manage staff from their phone · 用手机管理员工的老板. Face terminal you manage from the Hik-Connect app. 用 Hik-Connect 手机 app 管理的刷脸机。

Specs: 3,000 Faces · 150,000 Records · IP65 · Wi-Fi · Installed from RM 1,073

• Face, M1 card, QR code or PIN刷脸、M1 卡、二维码或密码
• Manage from the Hik-Connect app用 Hik-Connect 手机 app 管理
• Touchscreen call to the indoor screen or the app触屏呼叫室内屏或手机 app
• 3,000 faces, IP65 for indoor and outdoor doors3,000 张脸，IP65 室内户外都能装

Full specs 完整规格 · 6

Open with开门方式

Face · M1 card · QR · PIN

Capacity容量

3,000 faces · 3,000 cards · 150,000 records

Screen屏幕

4.3" touch

Network联网

LAN · Wi-Fi

Power供电

12–24 VDC

Protection防护

IP65

• Payroll link: ask us first要接算薪请先问我们

Installation Types in Kuching 古晋 — Replacement RM 325 to Indicator RM 1,200 per Door

Your installation type is set by what you add, and it shows in the variant you pick. Prices are per door.

1. Replacement Installation 更换安装 — RM 325 per Door

   Your existing lock 原有门锁

   We fit the new attendance terminal on your existing lock: power, wiring and basic setup. No new lock.

2. Standard Installation 普通安装 — RM 525 per Door

   + Door Lock Starter Kit 门锁套装

   With the Door Lock Starter Kit (+RM 130): 280 kg EM lock, L bracket, no-touch exit button, power point and 10 cards.

3. Emergency Installation 应急安装 — RM 850 per Door

   + Emergency Kit 应急套装

   Standard plus the Emergency Kit (+RM 195): breakglass, key switch, backup power and battery, so the door still opens in an emergency or power cut.

4. Indicator Installation 指示灯安装 — RM 1,200 per Door

   + Emergency + Indicator 指示灯

   Emergency plus the Indicator kit (+RM 230, always together with the Emergency Kit): breakglass and key switch with lights, red normally and green when the door opens.

Add-ons & Prices — Door Lock Kit RM 130, Emergency RM 195, Setup RM 325

Ask for these when we quote; they are not in the variant price.

• Doorbell DC12V 门铃+RM 15For readers with a doorbell key
• Remote × 3 遥控+RM 80One-click unlock
• Extra M1 cards × 10+RM 12For M1 card readers
• Extra EM cards × 10+RM 5For 125 kHz EM readers
• Door contact 门磁+RM 9Door-left-open / forced-open alarm
• Glass door bracket 玻璃门支架+RM 65EM lock on frameless glass doors
• Rain cover 防雨罩+RM 77Outdoor terminals
• Conceal Work 暗线工程+RM 525Wiring hidden in wall / ceiling
• Setup and Configuration 设置调试+RM 325Enrol cards / fingerprints / faces, schedules, network and app (1–4 units = one fee)
• Attendance System 考勤系统+RM 325Attendance software with training
• Mobile Attendance 手机打卡+RM 325Staff clock in from their phone
• Payroll 自动算薪+RM 2,000Calculates wages from attendance records
