Secure 门禁守护 Door Access Installation Kuching 古晋 | Hikvision Card & Face Recognition Terminal 801M 802M 809MX 323 344

Secure Models & Installed Prices in Kuching 古晋 — from RM 436

Per door, installed. Swipe the table sideways on a phone. 每扇门安装价，手机可左右滑动。

Secure Specifications — 6 Models Compared

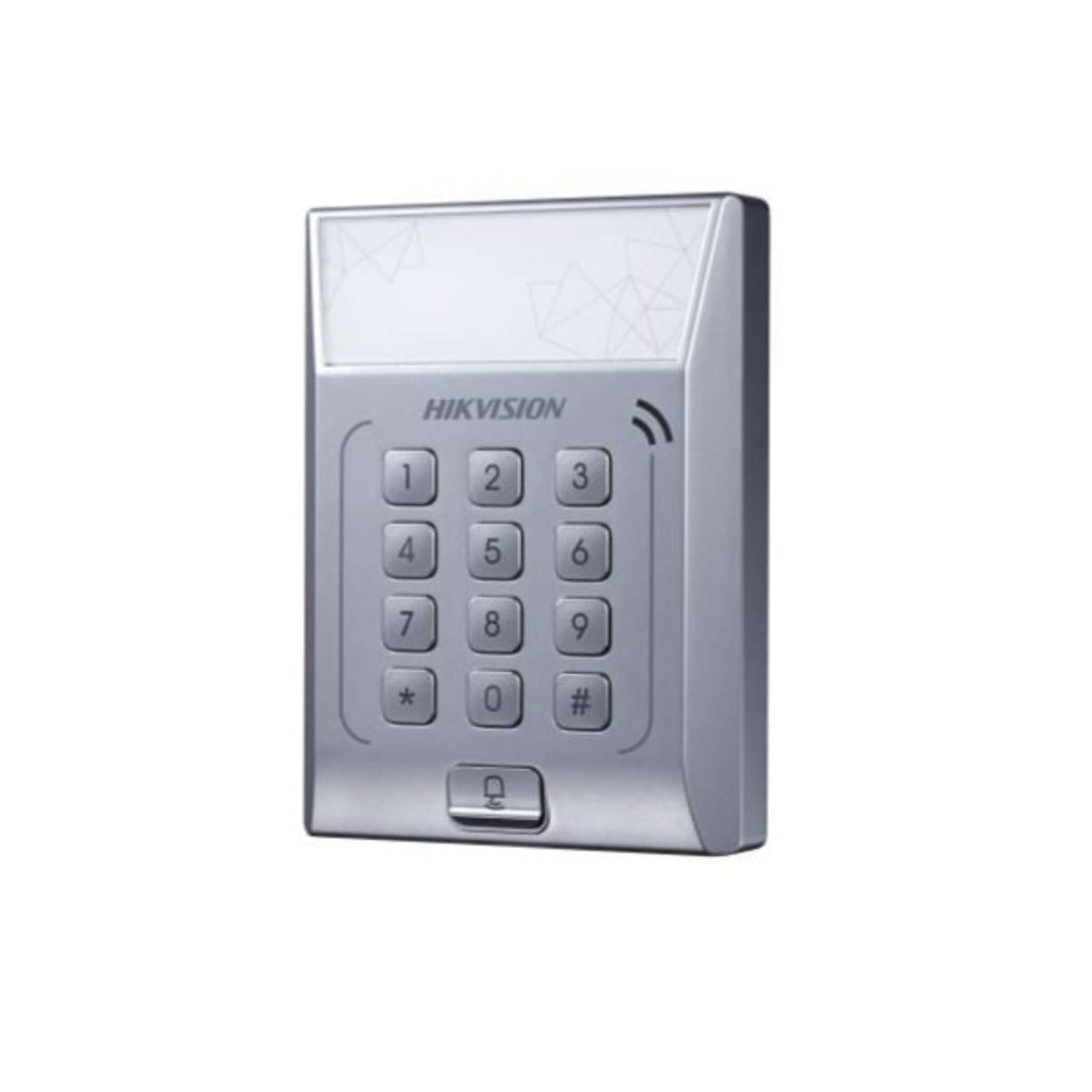

Secure Card Lite 经济刷卡 — DS-K1T801M · M1 Card + PIN · 3,000 Cards · Standalone

Installed from RM 436

• M1 card 刷卡
• PIN 密码

• Indoor 室内
• Standalone 单机

Best for 适合Small indoor doors: store rooms, offices, shops · 室内小门：储物间、办公室、店面. Tap a card, the door opens. Simple and low-cost. 拍卡即开，简单又省钱。

Specs: LCD · Doorbell Key · 12 VDC · Indoor · Installed from RM 436

• Opens with an M1 card, or card + PINM1 卡或卡 + 密码开门
• Stores up to 3,000 cards最多 3,000 张卡
• Works on its own: no network, no computer单机使用，不用网络、不用电脑
• Doorbell key built in, connects a DC12V doorbell自带门铃键，可接 12V 门铃

Full specs 完整规格 · 6

Open with开门方式

M1 card · card + PIN

Cards卡容量

3,000

Screen屏幕

LCD, date and time

Network联网

None (standalone) · 单机

Power供电

12 VDC

Size尺寸

126.5 × 94.5 × 24 mm

• Indoor use, keep away from rain室内使用，避雨
• Does not keep entry records不留开门记录

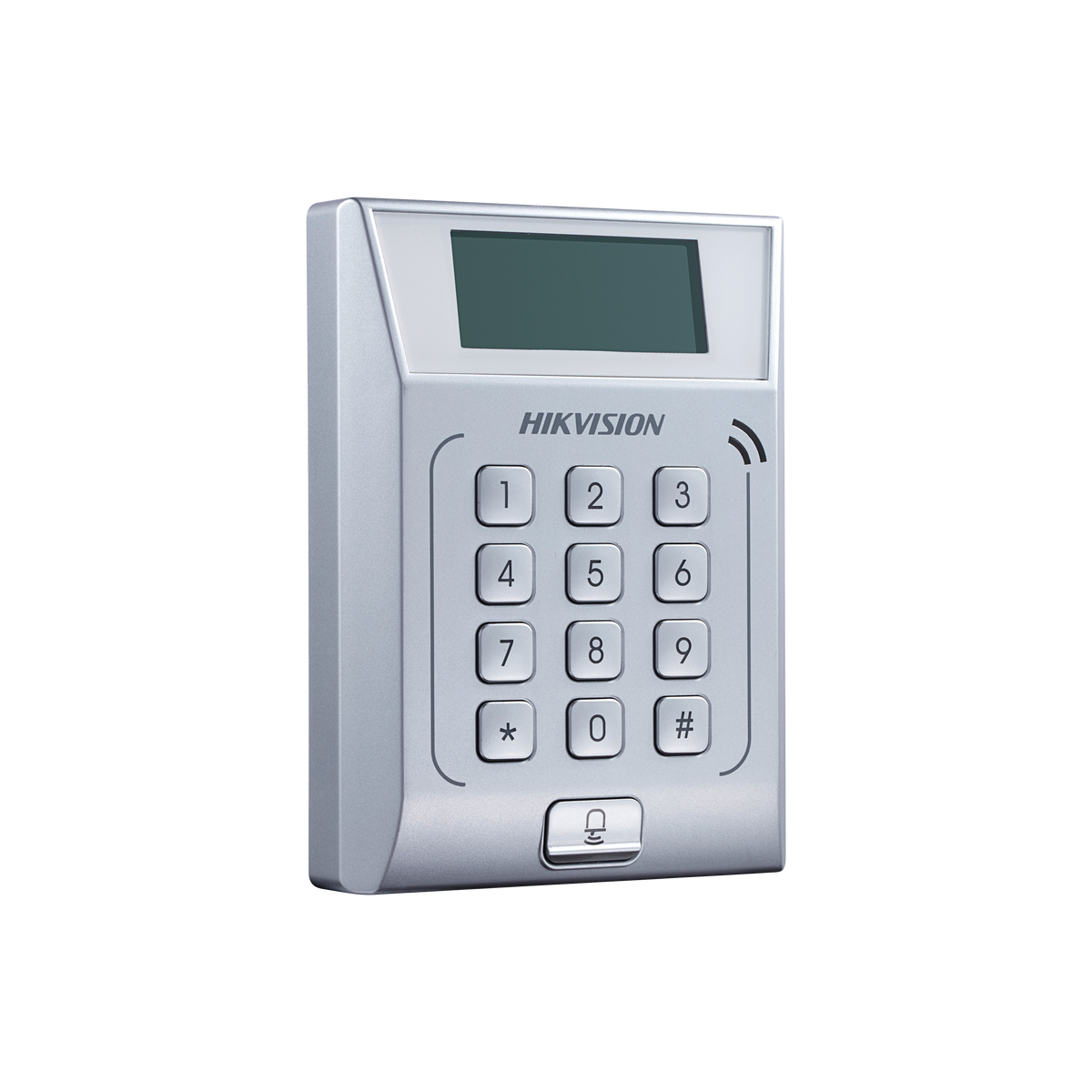

Secure Card Link 联网刷卡 — DS-K1T802M · M1 Card + PIN · 3,000 Cards · 10,000 Records · LAN

Installed from RM 555

• M1 card 刷卡
• PIN 密码

• Indoor 室内
• LAN 网线
• Records 记录

Best for 适合Offices and projects that need entry records · 要看进出记录的办公室和项目. Card access that records every entry. 刷卡开门，每次进出都有记录。

Specs: 128×64 LCD · iVMS-4200 Records · Door Alarms · Indoor · Installed from RM 555

• M1 card, or card + PINM1 卡或卡 + 密码
• 3,000 cards and 10,000 entry records3,000 张卡，10,000 条记录
• LAN connection to the iVMS-4200 PC software for records and attendance接网线，用电脑软件 iVMS-4200 看记录、做考勤
• Alarms for door left open, forced open and invalid cards门没关、强行开门、无效卡都会报警

Full specs 完整规格 · 6

Open with开门方式

M1 card · card + PIN

Capacity容量

3,000 cards · 10,000 records

Screen屏幕

128 × 64 LCD

Network联网

LAN (TCP/IP) · 网线

Power供电

12 VDC

Size尺寸

126.5 × 94.5 × 24 mm

• Indoor use, keep away from rain室内使用，避雨
• Doorbell key, connects a DC12V doorbell有门铃键，可接 12V 门铃

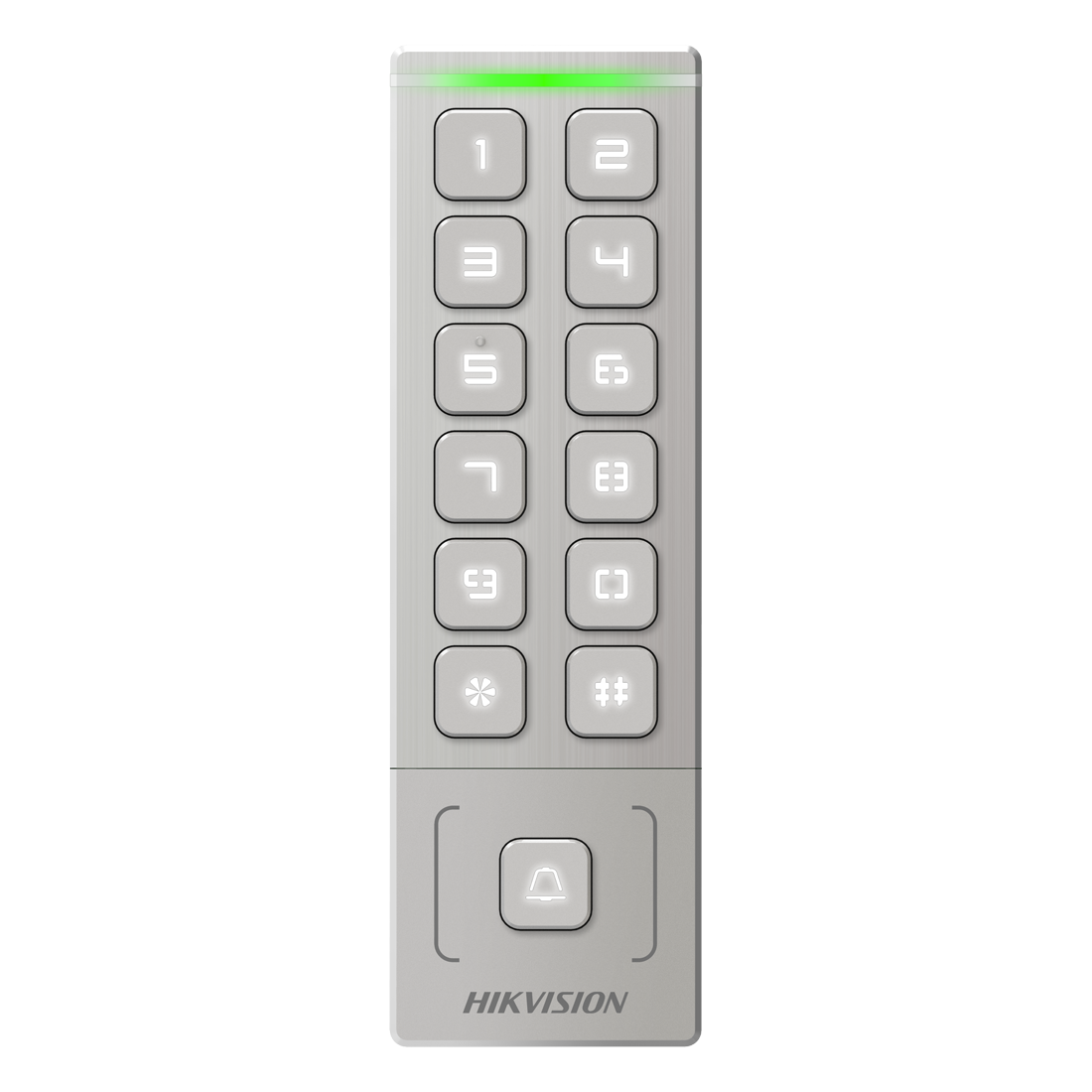

Secure Card Slim 窄框刷卡 — DS-K1T809MX · M1 Card + PIN · 1,000 Users · IP65 Metal · 48 mm Slim

Installed from RM 464

• M1 card 刷卡
• PIN 密码

• Outdoor 户外
• IP65
• Standalone 单机

Best for 适合Narrow door frames, gates and outdoor doors · 窄门框、大门、户外门. Slim metal reader for narrow frames and outdoor doors. 细长金属机身，窄门框、户外都能装。

Specs: −40 to 65 °C · Standalone · 12 VDC 1 A · Outdoor · Installed from RM 464

• Only 48 mm wide, slim metal body只有 48 mm 宽的金属机身
• IP65 waterproof, works from −40 to 65 °CIP65 防水，−40 至 65 °C 都能用
• Opens with an M1 card or PINM1 卡或密码开门
• 1,000 users1,000 个用户

Full specs 完整规格 · 6

Open with开门方式

M1 card · PIN

Users用户

1,000

Keypad按键

Physical buttons · 实体按键

Network联网

None (standalone) · 单机

Protection防护

IP65

Size尺寸

151 × 48 × 21.5 mm

• Does not keep entry records不留开门记录

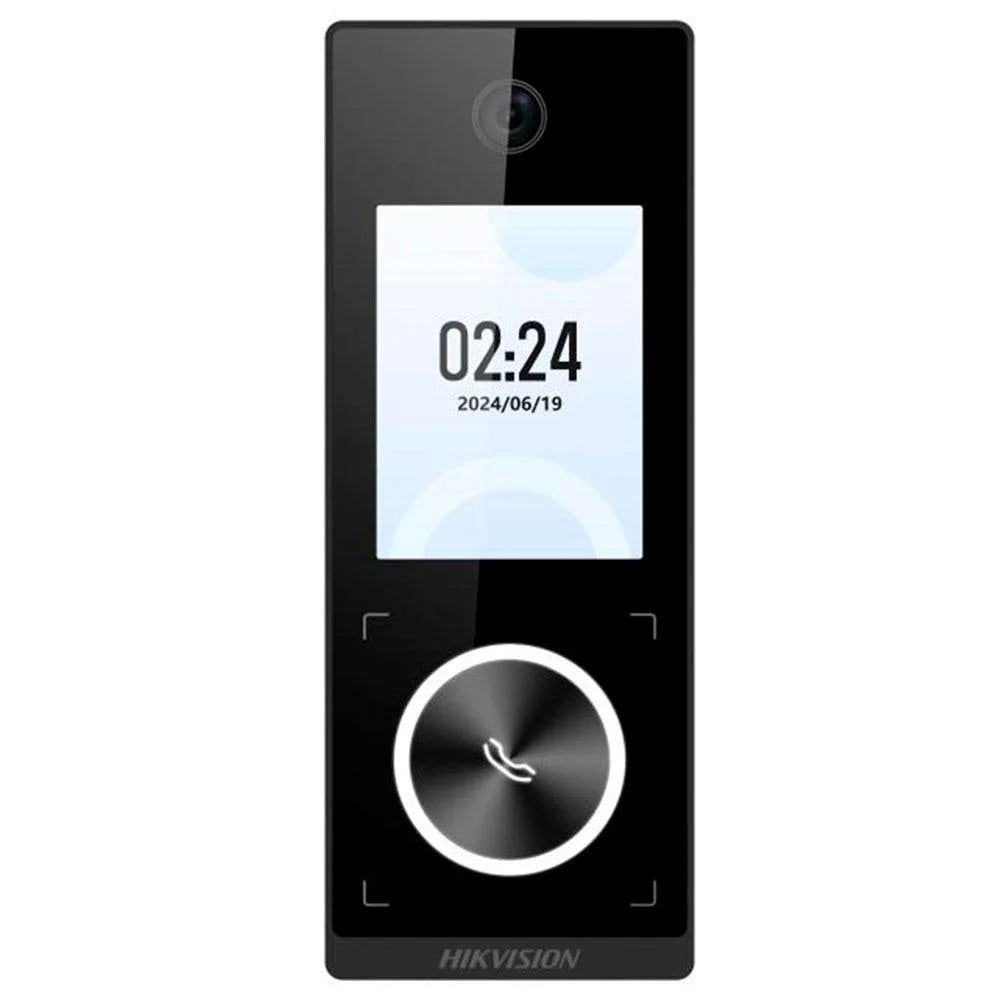

Secure Face Slim 窄框刷脸 — DS-K1T323MBWX-E1 · Face + M1 Card · 1,000 Faces · IP65 · 52 mm Slim

Installed from RM 787

• Face 刷脸
• M1 card 刷卡

• Outdoor 户外
• IP65
• Wi-Fi
• PoE
• Records 记录

Best for 适合Narrow door frames that need face access and a doorbell · 窄门框，要刷脸又要门铃. Face access in a 52 mm slim body, with a call button. 52 mm 窄机身刷脸，带呼叫键。

Specs: 2.4" Screen · Call Button · Wi-Fi · Bluetooth · PoE · Installed from RM 787

• Opens with your face or an M1 card刷脸或 M1 卡开门
• Face recognition at 0.3–1.5 m, accuracy over 99%, blocks photo and video tricks0.3–1.5 米刷脸，准确率 99% 以上，防照片、视频假脸
• Physical call button: rings the indoor screen for two-way talk实体呼叫键：呼叫室内屏，双向对讲
• Only 52 mm wide, IP65 for outdoor doors只有 52 mm 宽，IP65 户外可装

Full specs 完整规格 · 6

Open with开门方式

Face · M1 card

Capacity容量

1,000 faces · 3,000 cards · 150,000 records

Screen屏幕

2.4"

Network联网

LAN · Wi-Fi · Bluetooth

Power供电

12 VDC or PoE

Protection · Size防护 · 尺寸

IP65 · 135 × 52 × 26 mm

• Video talk needs an indoor screen (optional)视频对讲要另加室内屏
• No PIN or QR code不能用密码或二维码

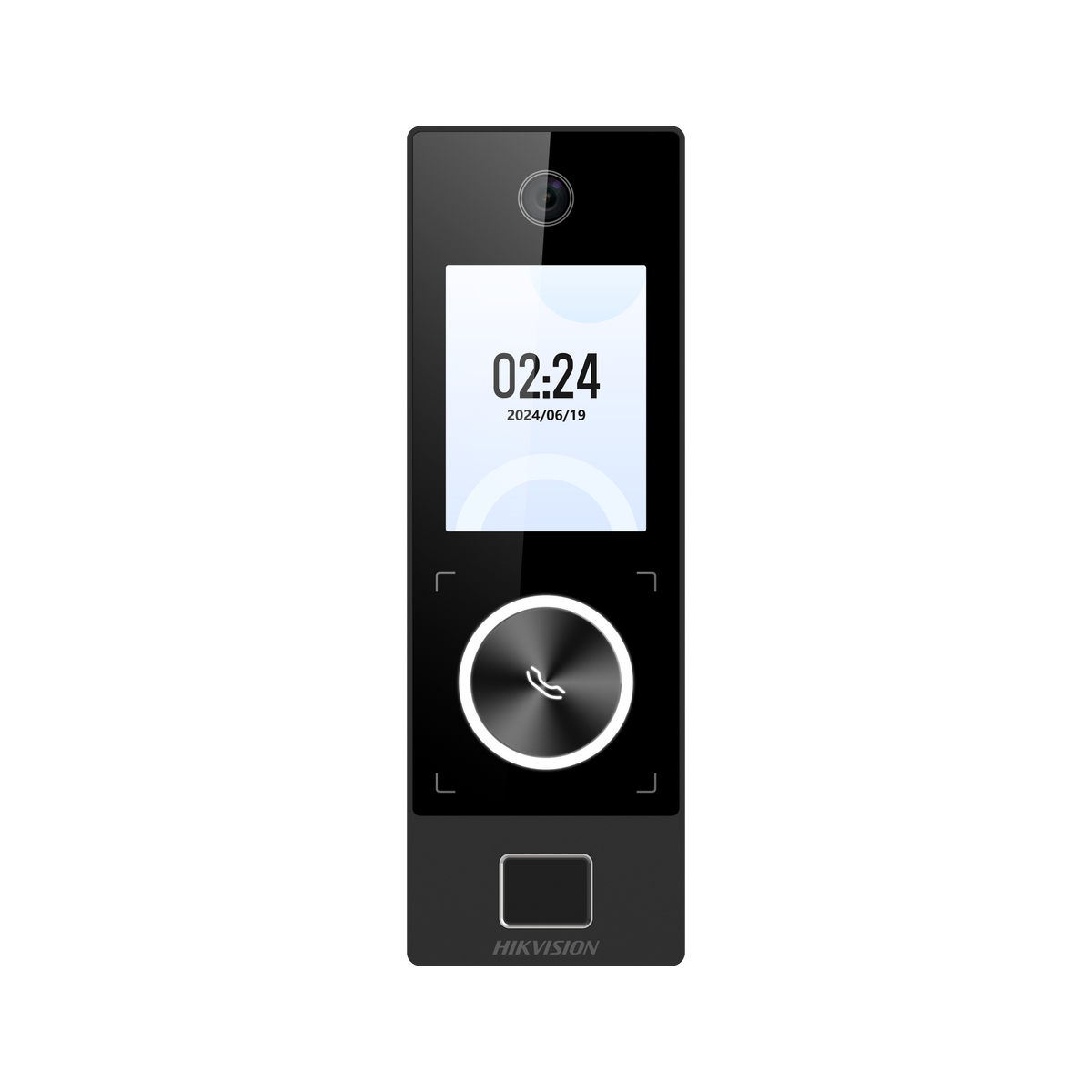

Secure Face Slim+ 窄框刷脸+指纹 — DS-K1T323MBFWX-E1 · Face + Fingerprint + M1 Card · 3,000 Fingerprints · IP65

Installed from RM 846

• Face 刷脸
• Fingerprint 指纹
• M1 card 刷卡

• Outdoor 户外
• IP65
• Wi-Fi
• PoE
• Records 记录

Best for 适合Narrow door frames that want face, fingerprint and a doorbell · 窄门框，要刷脸、指纹和门铃. Slim face access plus fingerprint, with a call button. 52 mm 窄机身，刷脸加指纹，带呼叫键。

Specs: 2.4" Screen · Call Button · Wi-Fi · PoE · 157 × 52 mm · Installed from RM 846

• Opens with face, fingerprint or an M1 card刷脸、指纹或 M1 卡开门
• Face recognition at 0.3–1.5 m, accuracy over 99%, blocks photo and video tricks0.3–1.5 米刷脸，准确率 99% 以上，防照片、视频假脸
• Physical call button: rings the indoor screen for two-way talk实体呼叫键：呼叫室内屏，双向对讲
• Only 52 mm wide, IP65 for outdoor doors只有 52 mm 宽，IP65 户外可装

Full specs 完整规格 · 6

Open with开门方式

Face · fingerprint · M1 card

Capacity容量

1,000 faces · 3,000 fingerprints · 3,000 cards

Screen屏幕

2.4"

Network联网

LAN · Wi-Fi · Bluetooth

Power供电

12 VDC or PoE

Protection · Size防护 · 尺寸

IP65 · 157 × 52 × 26 mm

• Video talk needs an indoor screen (optional)视频对讲要另加室内屏
• No PIN or QR code不能用密码或二维码

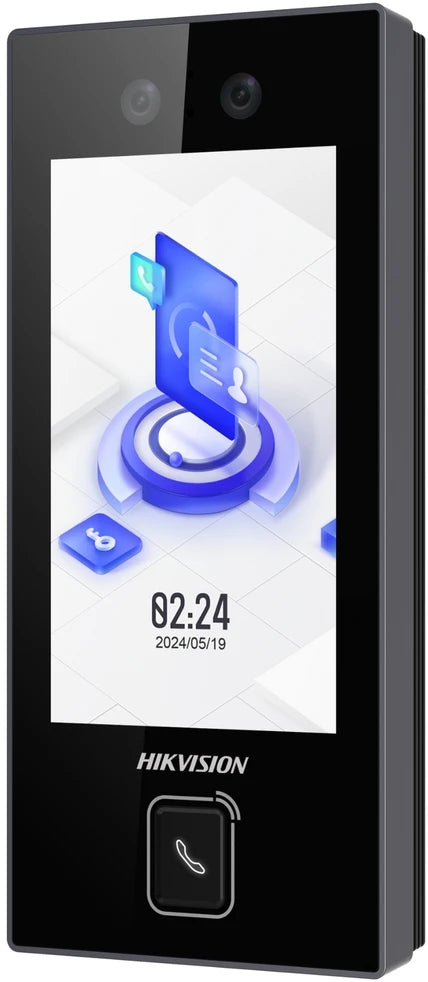

Secure Face Pro 大屏刷脸 — DS-K1T344MBWX-E1 · Face + Card + PIN + QR · 4.5" Touchscreen · 3,000 Faces

Installed from RM 1,088

• Face 刷脸
• M1 card 刷卡
• PIN 密码
• QR code 二维码

• Outdoor 户外
• IP65
• Wi-Fi
• PoE
• Records 记录

Best for 适合Main entrances and regular door frames · 主入口、常规门框. 4.5-inch touchscreen face access for main doors. 4.5 寸触屏刷脸，适合主门。

Specs: < 0.2 s Recognition · Call Button · IP65 · Wi-Fi · PoE · Installed from RM 1,088

• Face, M1 card, PIN or QR code刷脸、M1 卡、密码或二维码
• Recognizes a face in under 0.2 s, 3,000 faces0.2 秒内认脸，可存 3,000 张脸
• Call button and touch call to the indoor screen实体呼叫键加触屏呼叫室内屏
• IP65, Wi-Fi, Bluetooth and PoEIP65 防水，Wi-Fi、蓝牙、PoE

Full specs 完整规格 · 6

Open with开门方式

Face · M1 card · PIN · QR

Capacity容量

3,000 faces · 3,000 cards · 150,000 records

Screen屏幕

4.5" touch

Network联网

LAN · Wi-Fi · Bluetooth

Power供电

12 VDC or PoE

Protection · Size防护 · 尺寸

IP65 · 165.2 × 75.7 × 25 mm

• Video talk needs an indoor screen (optional)视频对讲要另加室内屏

Installation Types in Kuching 古晋 — Replacement RM 325 to Indicator RM 1,200 per Door

Your installation type is set by what you add, and it shows in the variant you pick. Prices are per door.

1. Replacement Installation 更换安装 — RM 325 per Door

   Your existing lock 原有门锁

   We fit the new door access terminal on your existing lock: power, wiring and basic setup. No new lock.

2. Standard Installation 普通安装 — RM 525 per Door

   + Door Lock Starter Kit 门锁套装

   With the Door Lock Starter Kit (+RM 130): 280 kg EM lock, L bracket, no-touch exit button, power point and 10 cards.

3. Emergency Installation 应急安装 — RM 850 per Door

   + Emergency Kit 应急套装

   Standard plus the Emergency Kit (+RM 195): breakglass, key switch, backup power and battery, so the door still opens in an emergency or power cut.

4. Indicator Installation 指示灯安装 — RM 1,200 per Door

   + Emergency + Indicator 指示灯

   Emergency plus the Indicator kit (+RM 230, always together with the Emergency Kit): breakglass and key switch with lights, red normally and green when the door opens.

Add-ons & Prices — Door Lock Kit RM 130, Emergency RM 195, Setup RM 325

Ask for these when we quote; they are not in the variant price.

• Doorbell DC12V 门铃+RM 15For readers with a doorbell key
• Remote × 3 遥控+RM 80One-click unlock
• Extra M1 cards × 10+RM 12For M1 card readers
• Extra EM cards × 10+RM 5For 125 kHz EM readers
• Door contact 门磁+RM 9Door-left-open / forced-open alarm
• Glass door bracket 玻璃门支架+RM 65EM lock on frameless glass doors
• Rain cover 防雨罩+RM 77Outdoor terminals
• Conceal Work 暗线工程+RM 525Wiring hidden in wall / ceiling
• Setup and Configuration 设置调试+RM 325Enrol cards / fingerprints / faces, schedules, network and app (1–4 units = one fee)
• Indoor screen 7" / 10"+RM 814+For the Face Slim / Slim+ / Pro call button: +RM 814 / +RM 1,427 incl. installation and adapter
